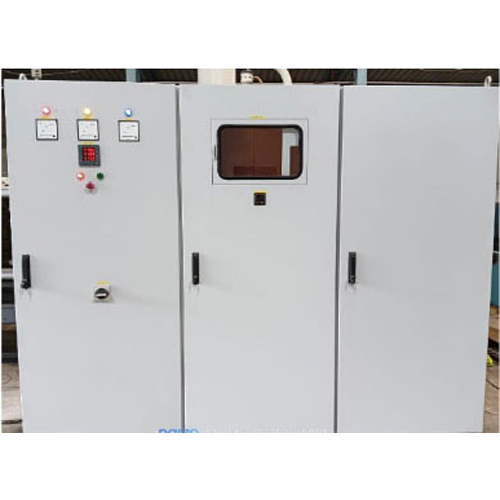

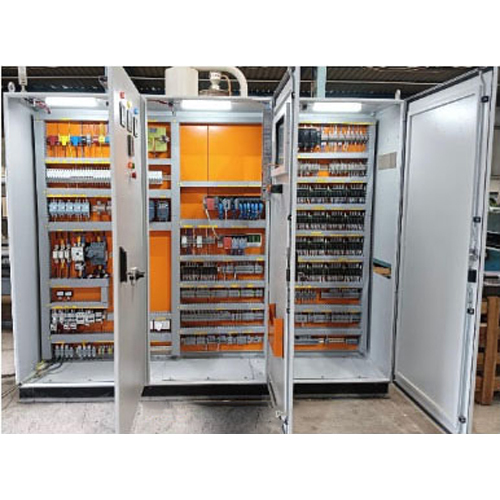

Control Panel for Die Casting Machine

The Die Casting Machine Control Panel is a state-of-the-art interface system engineered to provide precise control, monitoring, and automation for high-performance die casting operations. Designed for reliability and efficiency, the control panel ensures smooth machine operation, reduced downtime, and enhanced production output.

Key Features:

• User-Friendly Interface:
  Equipped with a touchscreen HMI (Human Machine Interface), the control panel offers intuitive navigation, real-time status updates, and alarm diagnostics for quick troubleshooting.

• PLC-Based Control System:
  Integrated with a programmable logic controller (PLC) for robust and flexible process automation. Supports customizable logic for various casting operations and machine configurations.

• Multi-Zone Temperature Control:
  Precise control of mold and plunger tip temperatures through multi-zone monitoring, ensuring consistent casting quality and reduced scrap rates.

• Cycle Management:
  Real-time monitoring and adjustment of injection speed, pressure profiles, and cycle time for optimal casting parameters.

• Safety & Interlocks:
  Built-in safety systems and interlocks for operator protection and machine safety. Emergency stop functions and status indicators ensure compliance with industrial safety standards.

• Data Logging & Connectivity:
  Supports data logging, production statistics, and recipe management. Optional integration with SCADA, MES, or Industry 4.0 systems via Ethernet, Modbus, or OPC-UA.

• Modular Design:
  Scalable architecture allows easy upgrades or integration with auxiliary systems like ladles, extractors, and sprayers.

Applications:

• Aluminum, magnesium, and zinc die casting

• Automotive components manufacturing

• Electrical enclosures and fittings

• Consumer appliance parts

• Aerospace and industrial castings

Benefits:

• Improved casting precision and repeatability

• Reduced cycle time and energy consumption

• Enhanced machine uptime and production efficiency

• Easy operation and maintenance

• Long-term reliability in harsh industrial environments
